CR-101

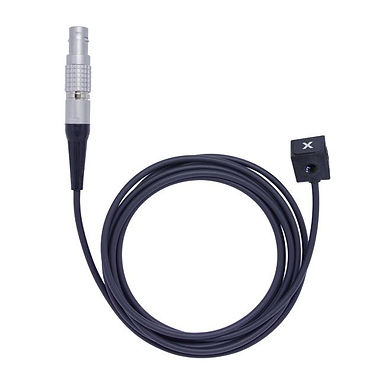

Accelerometer for HAV (Hand-arm vibration) assessments. The three channels(X, Y and Z) biodynamic coordinate system defines the position of the sensor according to the handle for manual equipment. The CR-101 features a MEMS sensor with the latest vibration transducer technology which provides greater shock resistance as well as being light and small.

Standards:
NR-15 Atividades e Operações Insalubres
NHO-10 Avaliação da exposição ocupacional a vibração em mãos e braços
ISO 5349-2 Mechanical vibration — Measurement and evaluation of human exposure to hand-transmitted vibration — part 2: practical guidance for measurement at the workplace

Technical Information
Triaxial Sensor
Frequency range: 0 to 2000 Hz
Operation Temperature: 0 to 50 ºC
Operation Humidity: 0 to 85% RH
Cable length: 1500 mm
Lemo type connector
Dimensions: 14 x 14 x 14 mm
Weight: 8 g
