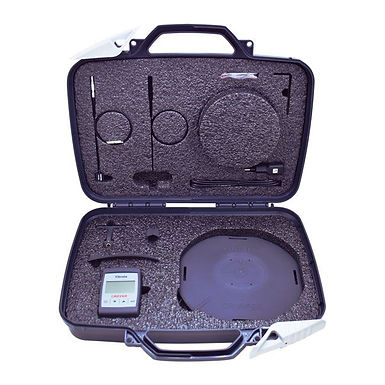

Vibrate
Vibration dosimeter for WBV (whole body vibration) and HAV ( hand-arm vibration). Manufactured in Brazil, Vibrate meets national and international occupational hygiene standards. CrifferSuite software provides the necessary results for preparation of reports, studies and expertise through the report such as AREN, Crest Factor (FC) and resulting vibration dose value.

ISO-8041 (2005) Human response to vibration -- Measuring instrumentation
ISO-5349-1 (2001) Mechanical vibration — Measurement and evaluation of human exposure to hand-transmitted vibration –General requirements
ISO-5349-2 (2001) Mechanical vibration — Measurement and evaluation of human exposure to hand-transmitted vibration — Part 2: Practical guidance for measurement at the workplace
ISO-2631-1 (1997) Evaluation of human exposure to whole-body vibration — Part 1: General requirements

Technical Information:
Display: High contrast backlit LCD screen
Simultaneous vibration measurements on the 3 axes: X, Y and Z
Whole body vibration measurements with triaxial seat accelerometer
Hand-arm vibration measurements with triaxial accelerometer and adapters
WBV Frequency weighting: Wk and Wd
HAV Frequency weighting: Wh
Measurement parameters: RMS, VDV, Aeq, Am, Amr, Amep, Are, Aren, A (8), Arep and Crest Factor
Overload indication
Calibration through sensitivity or with external calibrator
Storage: up to 60 measurements (20k records)
Data logging intervals: 1 to 60s
Operation temperature: 0 to 70 ºC
Operation Humidity: 0 to 95% RH
High resistance to EMI/RFI
Power Supply: rechargeable li-ion battery
Battery Life: 10h
Charger: bi-volt with USB connection
USB Interface
Dimensions: 90 x 62 x 24 mm
Weight: 125 g

Click to view the datasheet
